Dia 450mm Length 1200mm Rubber Calender Machine For Conveyor Belt

Brand Name : HHS

Model Number : XY-3L-630-2430

Certification : CE/ISO

Place of Origin : CHINA

MOQ : 1 set

Price : USD:5000-90000 /SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets/month

Delivery Time : 30 SETS/MONTH

Packaging Details : wood package/20-40 gp

colour : all

about weight : 4.8t-126t

motor power : 15kw-280kw

roller diameter : 230-810

advantage : high efficiency

Contact Now

Rubber Calender Machine for Conveyor Belt Production Line / Rubber Calender Machine

Product Description

Application:

Suitable to prepare plastic compound, mix rubber or conduct hot refining and molding.

Product Feature:

1. Made of high quality material 2.Easy installation directly on plain ground 3.Enforce cycle cooling system 4.Safe and efficient

Production Description:

1. Enhance the intensity of the machine body by using more carbon steel and less wrought iron.

2. Machine can be placed on the plain ground directly, other installation method is unnecessary.

3. The roller bearing supports the heavy loading and high temperature.Using roll bearing double the size and use less lubrication oil, able to use longer and easy to maintain.

4. All the parts of the machine are processed by rust proofing with chromium, to prevent the key parts polluted.

5. Enforce cycle cooling system, enhance the cooling effect by using spin joint and enlarge pipe.

6. Using energizing mechanic power off system, guarantee the well and speedy function under the long term using.

product parameter

Model	XY-4 630	XY-3I 1120A XY-3 1120A XY-3l1120A	XY-3I 1400	XY-3I 1200 XY-3I 1500	XY-3I 1730	XY-3I 2130


Roll diameter (mm)	230	360	400	450	610	710
Roll working length (mm)	630	1120	1400	1200(1500)	1730	2130
Roll speed ratio	1:01:01 1:1.42:1	1:01:01 0.733:1:1 0.733:1:0.733	1:01:01 1:1.383:1.383 1:1.383:1	1:01:01 1:1.5:1	1:01:01 1:1.4:1	1:01:01 1:1.48:1


Middle-roll linear speed (m/min)	7.97	7.0-21.06	8.8-26.39	8.36-25.08	5.4-54	8-50
Adjusting nip range (mm)	0-7	0-10	0-10	0-6	0-20	0-20
Min.Calendering product thickness (mm)	0.2	0.2	0.2	0.15	0.15	0.15
Calendering product width (mm)	100-500	500-920	1200	1100(1400)	1500	1900
Motor power (kw)	7.5	40/13.3	55/18.3	75/25	132	185
Overall dimensions (mm)	2570×740× 1500	5550×1640× 2120	6500×1500× 2440	7120(7420)×2200× 2900	7010×3950× 3730	7650×4560× 4080
Weight (kg)	~4200	~12750	~26000	~27000	~52000	~67000

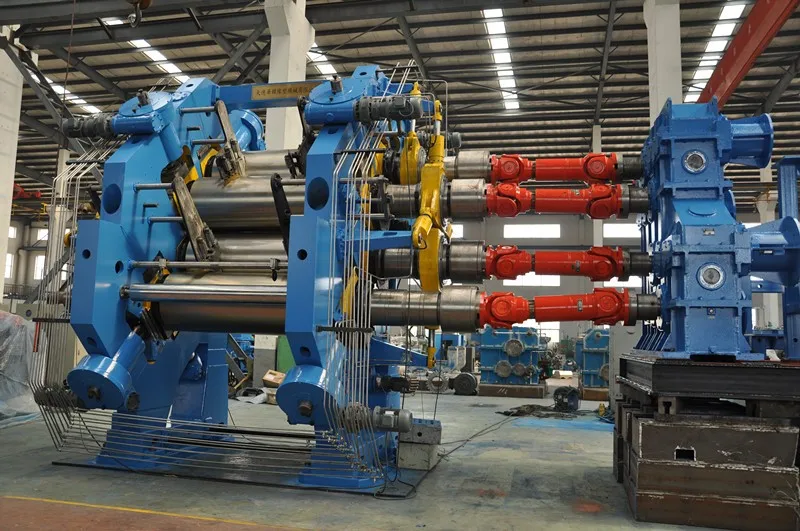

Features&Pictures

Dia 450mm Length 1200mm Rubber Calender Machine For Conveyor Belt

Motor&Electric:

a. Equiped with "SIEMENS" "MITSUBSHI" "CHINT",etc.
b. Imported PLC auto control,Safe, Seliable,Stable.

c. Patented design, energy conservation.

Transmission System:

a. Hardened tooth-surface reducer.
b. Higher transmission efficiency; Lower noise; Longer Service Life.

Base Frame:

a. Whole casting framework,base frame welded by high quality steel,firm and durable.

b. Whole processed by pentahedron,machining center to ensure accuracy.

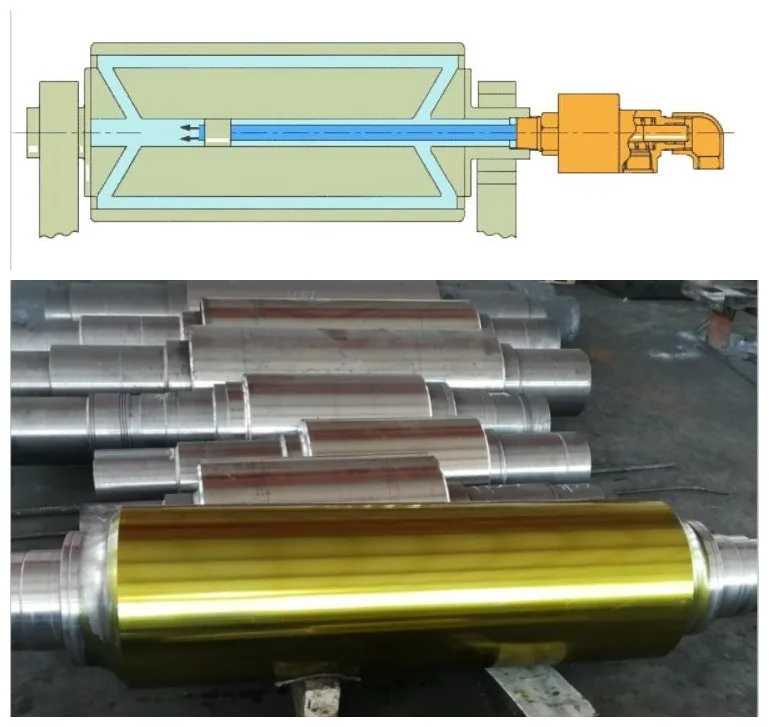

Rolls(Dalian Bao Feng):

a. Made of chilled cast iron with vanadium and titanum alloys.
b. Working surface Hardness:HS72±2

c. Drilled or Hollow Structure

Heating and Cooling System:

a. PLC Control the temperature.
b. High precision temperature control Heating and cooling fastly.

Nip Adjust System:

Combine Mechanical with hydraulic type nip adjust,high-precision,ensure produce thickness.

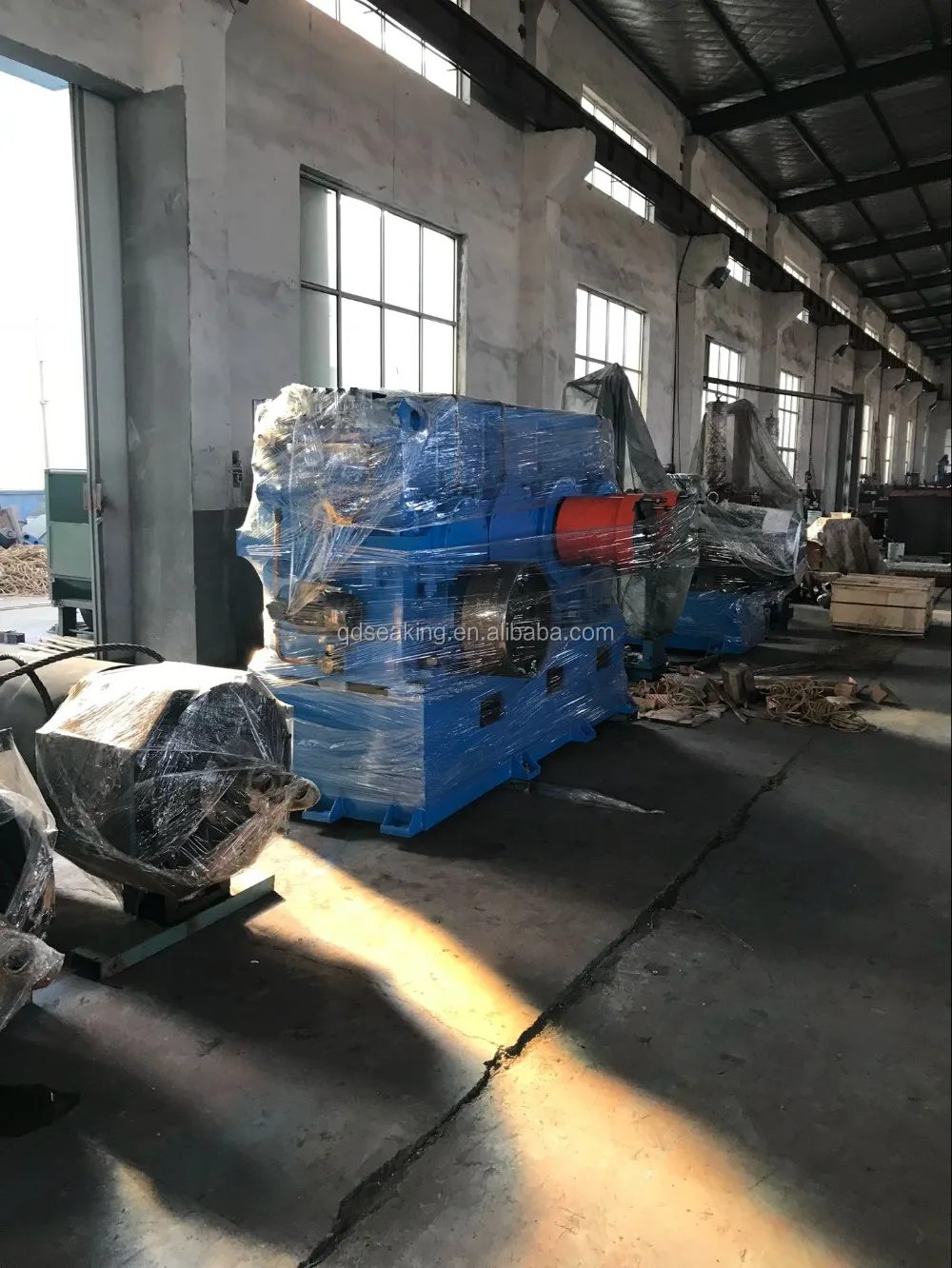

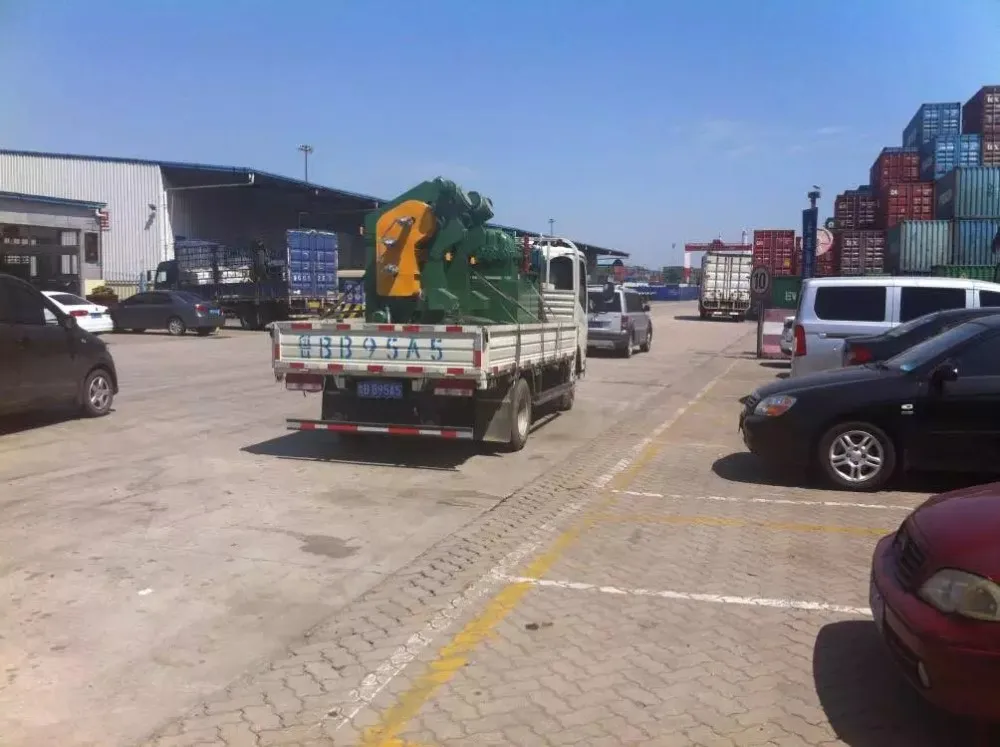

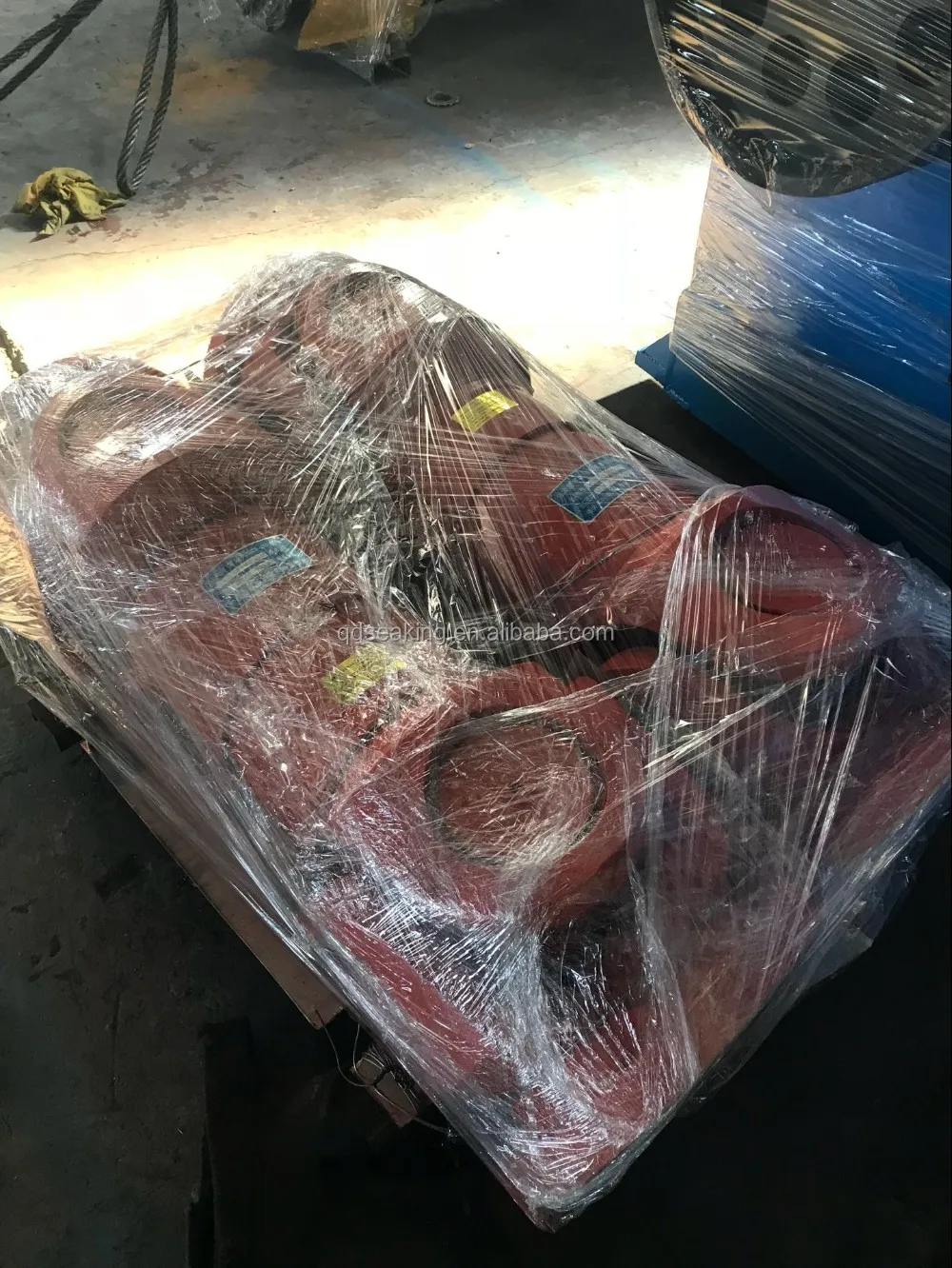

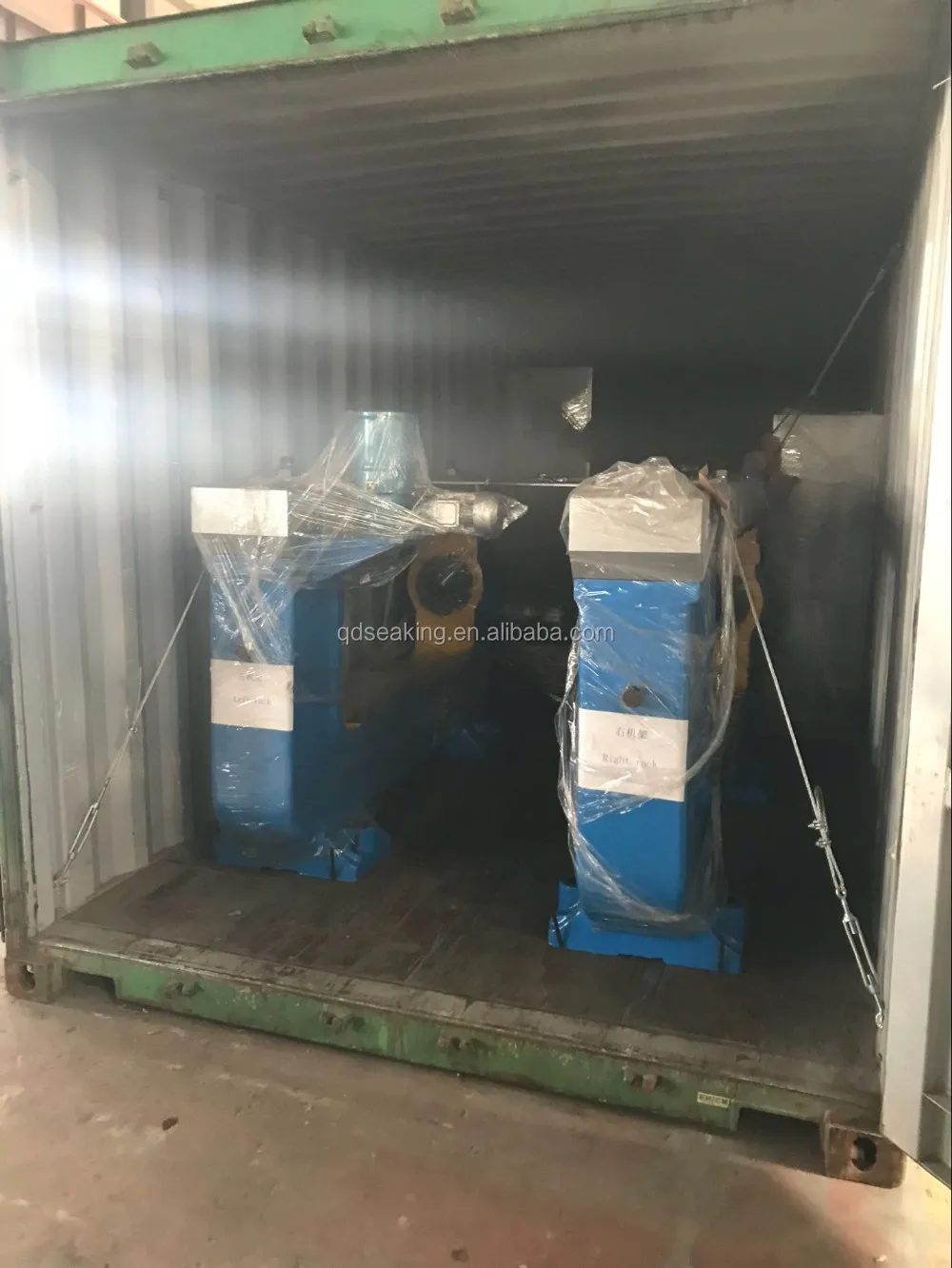

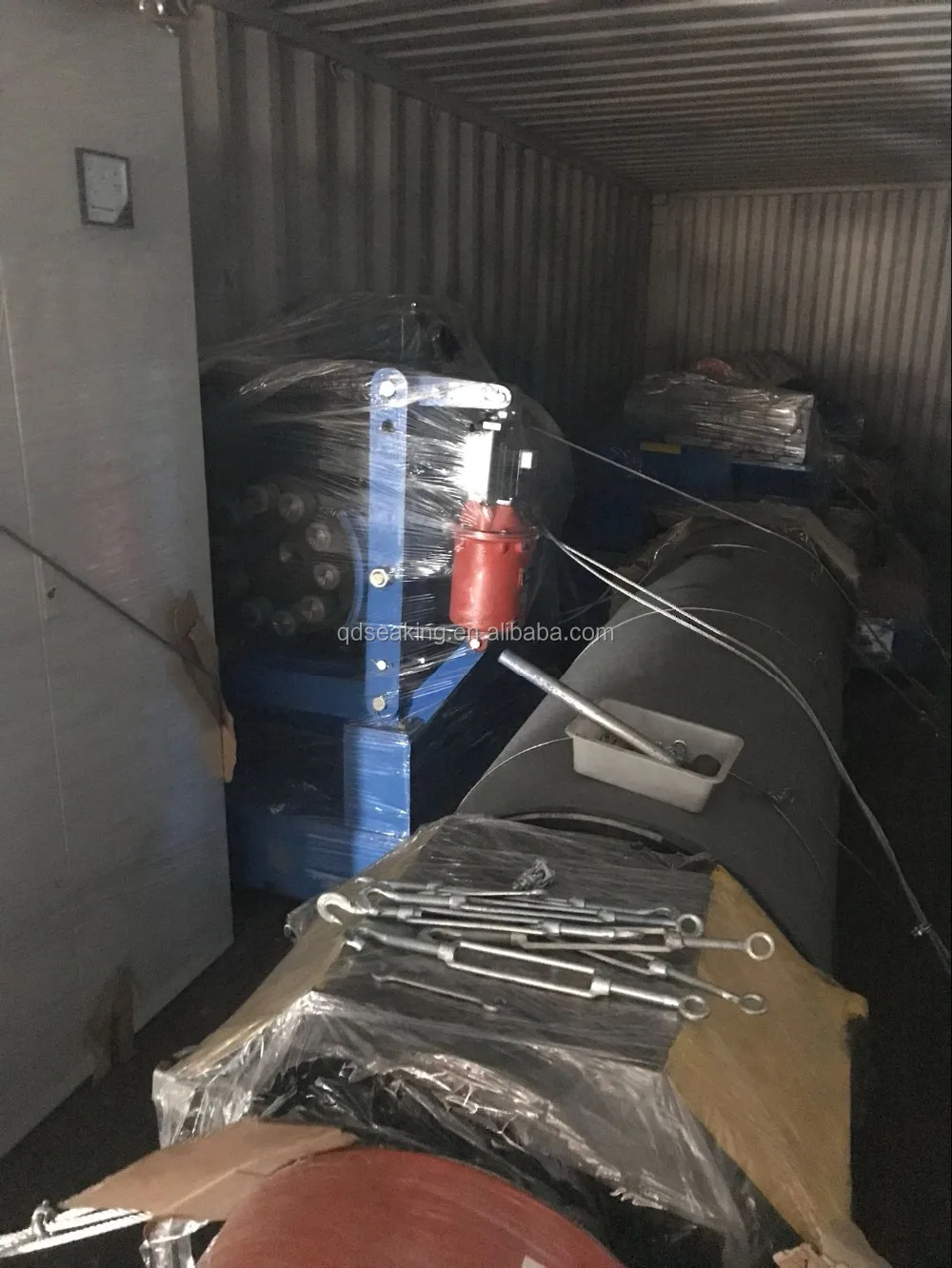

Packing & Delivery

Step 1: Machine main body and accessories rust preventing oil treatment.
Step 2: Wooden Carton or stretch film packing.

Dia 450mm Length 1200mm Rubber Calender Machine For Conveyor Belt
