250×720mm Three Roll Rubber Calendering Machine For Rubber Sheet

Brand Name : hhs

Model Number : XY-3-250-810

Certification : ISO9001:2008/CE

Place of Origin : Shandong, China

MOQ : 1 set

Price : USD:5000-20000 /SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets/month

Delivery Time : 30 SETS/MONTH

Packaging Details : wood package/20-40 gp

Condition : New

Video outgoing-ins : Provided

Warranty : 3 years

Core Components : PLC, Engine, Gearbox, Motor, Gear, Pump

Dimension(L*W*H) : 3500*3200*2800mm

Weight (KG) : 8000 kg

Applicable Industries : rubber machine

roll material : chilled cast iron

Contact Now

Product Application

rubber calender is used for rubber (plastic)calendering , precisely sheeting ,textile fabric fractioning ,double side coating , sheet laminating and so on

Main Features

1) The bedplate is whole model, installation convenience.

2) Rollers are made of chilled cast alloy iron, the working surface of roller is hardness and smoothly. steam and cooling water can pass through inner of the rollers so that surface temperature can be adjustable.

3) Adopt roll bearing, high precision, long service life, axes pathway is no abrasion.

4) Full range of bending deflections is optional including middle height, inflection and axis crossing.

5) Adjusting spacing device is consisted of one left and one right hand wheel. The bearing bases need is moved and reached nip by worm and worm wheel. Roller space can be adjusted manually or by electric motor.

6) Roller arrangement can be "I" type, "F" type, "Z" type, "L" type and "invert L" type.

7) The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.

8) Perfect emergency stop device can ensure the safety of person and equipment.

We may design and produce it as per customers' requirements, equip various accessories, composing combined product line. Below is the main parameters:

Model	XY-230*630	XY-252*720	XY-360*1120
roller diameter	230	252	360
roller working length	630	720	1120
roller ratio	1:1:1/1:1.2:1	1:1:1	1:1:1
middle roll linear speed	0.8-8 M/MIN	2-15.9	3-20
Adjusting nip range	0-7	0-10	0-10
Min calendering thickness	0.2MM	0.2MM	O.2MM
calender product width	500	550	920MM
motor	7.5 KW	22 KW	45KW
machine weight	about 3 t	about 5.5 t	about 14 t

Model	XY-400*1200	XY-450*1400	XY-610*1730
roller diameter	400	450	610
roller working length	1200	1400	1730
roller ratio	1:1:1	1:1:1	1:1:1
middle roll linear speed	3-26.39	2.62-26.62	5.4-54
Adjusting nip range	0-10	0-10	0-20
Min calendering thickness	0.2	0.2	0.15
calender product width	1200	1250	1500
motor	55	75	160
machine weight	about 18t	about 21 t	about 43t

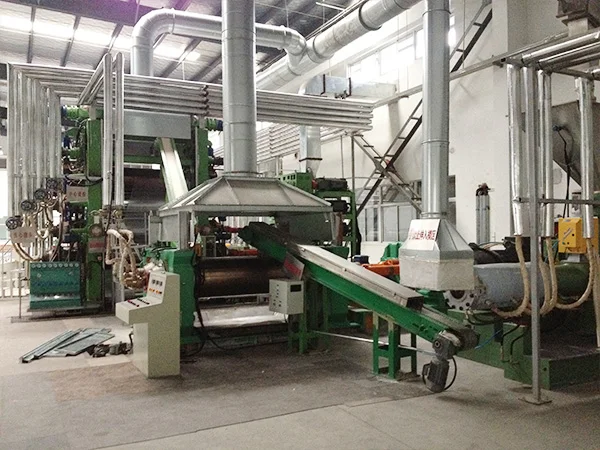

Product Display

250×720mm Three Roll Rubber Calendering Machine For Rubber Sheet
